Gas(oil) Fired Vertical Steam Boiler

The shell-type fire tube structure is adopted, and the flame is burned downward to enhance the heat transfer effect, thereby reducing the convective heating area; the flow resistance of the flue gas is small, the running power consumption is low, and the operation cost is saved.

Rated thermal power: 0.5-1.0t/h

Rated thermal efficiency: 95-96%

Pressure: ≤0.8MPa

Available fuel: natural gas, liquefied petroleum gas, etc.

Our boiler products are applied in these enterprises.

Low Nitrogen Environmental Protection Boiler, Built for 20 Years

TECHNOLOGY&PROCESS

Read more
Multiple security protection

Multiple security protection

More than ten safety protection systems such as water shortage protection, power protection, pressure controller and scale monitor are adopted. Once a fault occurs, the alarm system is immediately activated to maintain the overall safety of the boiler.

Multiple security protection

Integrated solution of waste heat

An Integrated solution of waste heat is added. The condensing device is installed at the tail of the flue pipes. After the high temperature flue gas passes, the latent heat is released. The exhaust gas temperature can be lowered to 95 °C, the thermal efficiency is as high as 96%.

tx_Gas(Oil) fired vertical steam boiler supplier,price,for sale

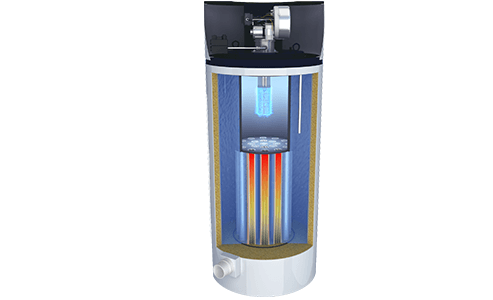

Gas Fired Vertical Steam Boiler Anatomy

px_Gas(Oil) fired vertical steam boiler supplier,price,for sale

Gas(oil) Fired Vertical Steam Boiler Technical Parameters (Slide Left And Right)

Types Thermal power Steam pressure Thermal efficiency Fuel Power requirements Length*Width*Height Weight Chimney
Unit Kw Mpa % V/Hz mm kg mm
V3 99 1 90 Natural gas 220/50 1700*820*1100 420 180
