The boiler adopts advanced full premixed combustion technology to achieve super high utilization of fuel, and the operating efficiency is increased by more than 15% compared with ordinary boilers. The integrated structure design reduces the floor space by more than 30%. It is the preferred equipment for energy-saving heating in hotels, shopping malls and schools.
Rated thermal power: 0.7-2.8Mw
Rated thermal efficiency: 97.2-106%
Pressure: 0.1MPa
Available fuel: natural gas
The winged heat exchange element, the unique tear groove design increases the heat exchange area by 5 times, and the heat transfer efficiency is superior.
By optimizing and improving the boiler and burner structure, the boiler body is greatly reduced to only 40% of the volume of an ordinary hot water boiler.

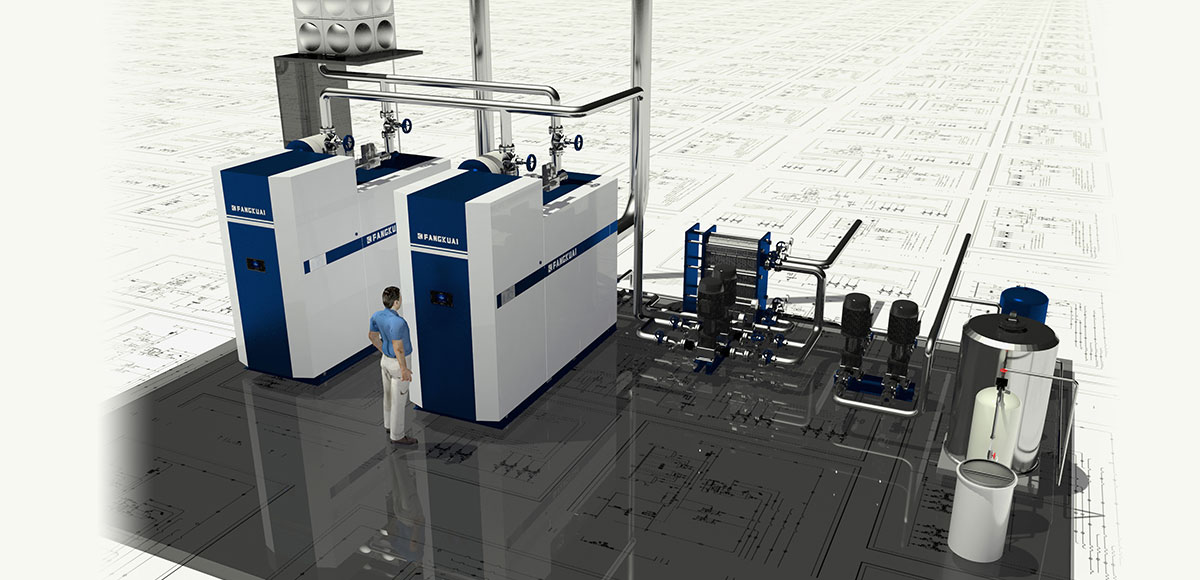

Boiler installation design, in-plant commissioning, user site only need to install in and out of water pipes, chimneys, gas pipes and power, you can use.
Effective control of pollutant emissions through the use of full premixed combustion technology and condensate at the end of the boiler.
This is a new type of environmentally friendly combustion method. Through precise adjustment and control, the gas and air are completely mixed and the combustion is more complete. The surface combustion technology makes the boiler more efficient.

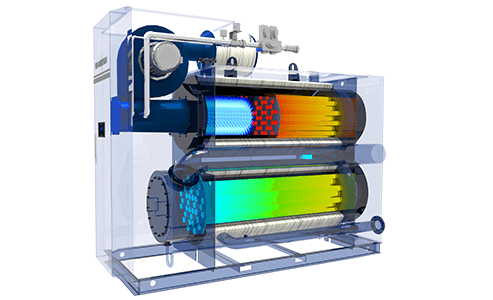

The unique crossing wing-shaped heat exchange tube increases the heat exchange area by more than 5 times, and more heat in the flue gas is displaced, thereby increasing the heat transfer efficiency.
| Types | Rated Thermal Power | Rated steam pressure | Thermal efficiency | Fuel | Power requirement | Length*Width*Height | Weight | Chimney |
|---|---|---|---|---|---|---|---|---|
| Unit | Mw | Mpa | % | V/Hz | mm | t | mm | |
| H6-700 | 0.7 | 0.1 | 97.2-106% | Natural gas | 220/50 | 1960*1000*1860 | 1.86 | 250 |
| H6-1400 | 1.4 | 3595*1325*2750 | 4.4 | 300 | ||||
| H6-2800 | 2.8 | 4205*1950*3380 | 6.9 | 450 |
